DryLin® N - Technical data

System	N17	N27	N40	N80
Rail width	17 mm	27 mm	40 mm	80 mm
Installation height	6 mm	9,5 mm	9,5 mm	12 mm
Order number carriage	NW-02-17	NW-01/02-27	NW-02-40	NW-02-80
Order number rail	NS-01-17	NS-01-27	NS-01-40	NS-01-80
General features
Weight of rail	150 g/m	290 g/m	450 g/m	1140 g/m
Weight of carriage	1,7 g	10,8 g/12,5 g	30 g	100 g
Max. rail length	2000 mm	3000 mm	3000 mm	3960 mm
load capacity
Fy	50 N	500 N	700 N	1000 N
Fz	50 N	500 N	700 N	1000 N
Mx	0,31 Nm	5 Nm	10 Nm	32,4 Nm
My, Mz	0,18 Nm	2,5 Nm	6 Nm	15 Nm
Carriage options
Floating bearing in y-direction	•	•	•	•
Floating bearing in z-direction	•	•	•	•
Floating bearing YZ direction	•	•	•	•
Preload (1N)	•	•	-	-
Injection-molded version	-	•	•	•
Carriage with through bore	-	•	•	-
Carriage with mounting nuts	•	•	•	•
•Available from stock

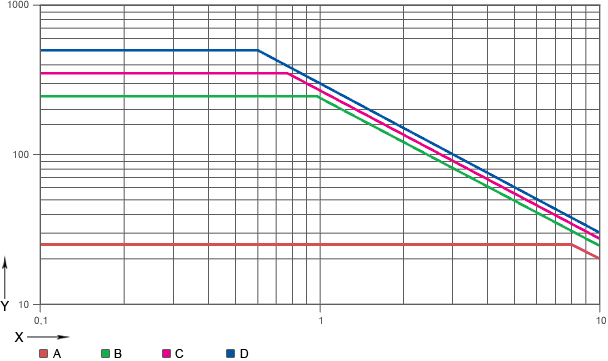

F x v diagram, max. permitted dynamic load

X = Speed v [m/s]
Y = Load F [N]

A = Size 17
B = Size 27
C = Size 40
D = Size 80
