Packaging machine
DryLin® W linear guides in a demanding application on a packaging machine running 24 hours a day.
 |
|
DryLin® linear bearing application examples
Oil- and maintenance-free
DryLin® linear bearings and linear guides are designed to operate without lubrication or maintenance. This means that they are suitable for a wide range of applications ranging from medical and laboratory equipment, packaging machinery, food processing equipment, and applications in dirty or dusty environments.
Since the plastic sliding elements that replace ball bearings are produced through injection molding, the DryLin® range offers a significant price advantage.
You can read some application examples below.
Drilling rig handling system
One of the world’s leading manufacturers of portable drilling rigs uses DryLin® R linear bearings in this unique, automatic rod-handling system.
Lab equipment for liquid handling
DryLin® trapezoidal lead screw drives are used in this laboratory equipment for liquid handling.
Physisorption and chemisorption analyzers
DryLin® R replaced recirculating ball bearings that required frequent maintenance and re-lubrication.

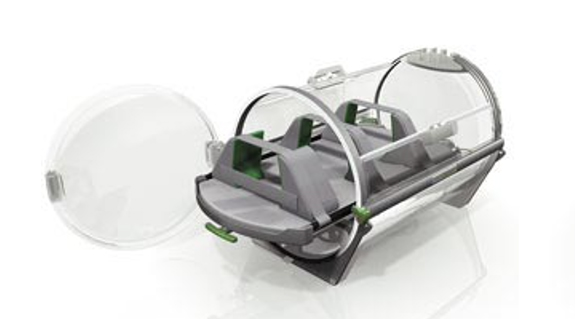

Transport incubator for babies
DryLin® W linear guides exceed infection control protocol, fit with the clean aesthetic and offer a cost-effective, silent, low-maintenance solution.
Metalworking machine
DryLin® T profile rail guides replace recirculating ball bearing linear guides.
Material handling equipment
Lightweight and low cost: DryLin® R, W, T and N are used in this material handling application.
Offshore drilling inspection device
iglide® G300 plastic plain bearings, igubal® rod ends, clevis joints, and DryLin® N linear guides for the offshore industry.
CNC engraving machine
This CNC-controlled, three-axis machine uses DryLin® R linear bearings, DryLin® W modular linear guides, and DryLin® T profile rail guides, as well as a Zipper-style cable carrier.
Art restoration robot
DryLin® T linear guides, DryLin® ZLW belt drive and igubal® rod ends in an art-restoration machine
Robotic end-effector
DryLin® T is used for its low weight in this tile-handling machine
Bottle packaging
DryLin® N linear slides are ideal for this bottle packaging machine
Concrete pipe cutter
DryLin® R linear bearings have run oil-free for over three years in this heavy duty concrete pipe cutter
Elevator lift
DryLin® aluminum shafting is used in this residential elevator lift for its near silent operation
Handling device
DryLin® linear slides offer higher accelerations and lower inertia than ball bearings, making them ideal for high-speed handling equipment
ATM machine
DryLin® N is used on this ATM machine due to its low-cost durability and maintenance-free operation
Rotary indexing table
DryLin® T used on a plastics manufacturing indexing table
Manufacturing test stand
Toothbrush testing machine runs with exceptionally low noise thanks to DryLin® T linear guides
Bottle capping machine
Its clean, oil-free operation makes DryLin® R linear bearings an ideal choice for the food and packaging industry
Guard for Die Cast machine
Compact DryLin® W helps guide the sliding doors on this die-cast machine
Linear actuator
DryLin® W performs at speeds up to 26 ft per second in this linear actuator
Testing and loading device
DryLin® N in a testing and loading device for airplane components
Foosball table
DryLin® R moves the computer-controlled players on this automated foosball table
Circuit board pick and place
Insertion head for circuit board pick and place machine uses DryLin® R liners
Handling device
Profile rail guides enhance technical performance of handling device
Tool presetting device
DryLin® W linear guides help keep CNC machine accurate, lightweight and flexible
Home entertainment systems
DryLin® is used for its low cost, low weight, and quiet operation on TV screen cover-up.
Rotating machine tool
This rotating machine tool for furniture production uses DryLin® linear guides.
Enveloping machine
DryLin® T profile rail guides in a pneumatic opener mounted on its side.
Horizontal form-fill-seal machine
DryLin® EasyTube is used to adjust the format of bag sizes.
Encoding machine
DryLin® leadscrew table for height adjustments in an encoding machine.
Inspection optics
DryLin® T profile rail guides used in inspection optics technology.
Fill shoe on a powder press
DryLin® R linear bearings replaced ball bearings in this fill shoe mechanism for a powder press.
Gripper for bakery products
This gripper picks up freshly baked goods from a conveyor belt and packs them into baskets.
More application examples
